The Alcatel 7670 Routing Switch Platform (RSP) is a multiservice platform that delivers IP/MPLS and ATM-based services reliably and concurrently. The platform allows service providers to preserve and expand current services while transitioning towards an IP/MPLS infrastructure. The 7670 RSP supports a wide range of services including IP-VPNs, Layer 2 VPNs, Ethernet, ATM, and frame relay, and it supports high-density, channelized, multiservice cards that offer flexibility with the ability to support multiple concurrent services at different speeds on a single card. The 7670 RSP scales rapidly and without service interruption from 50 Gb/s to 450Gb/s (full duplex, redundant).
The 7670 RSP was originally manufactured by Newbridge as the 670 RSP in 2000. Newbridge was acquired by Alcatel in 2002, and Alcatel re-branded the platform as the 7670 RSP. Alcatel and Lucent later merged in 2006 and became Alcatel-Lucent, and the company was later acquired by Nokia in 2016.
| Part | HECI | Description | |
|---|---|---|---|
|
90-4669-02-00-H00-H 90-4669-02 |

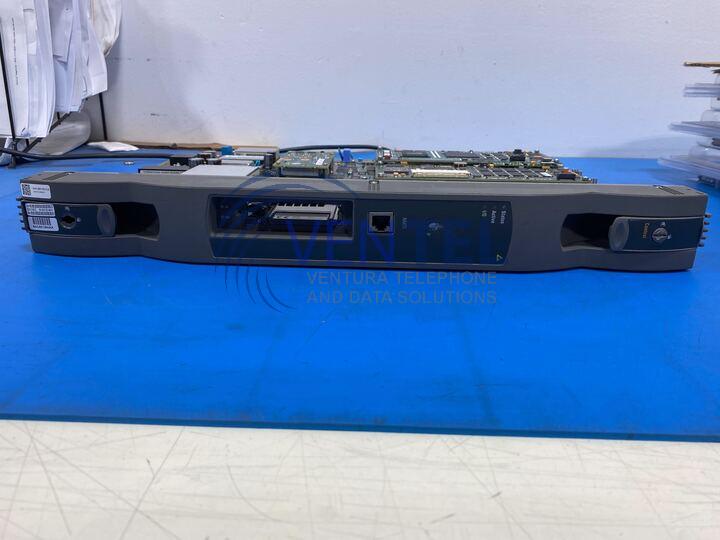

BAC8818 BAC8818HAA | CONTROL CARD 2 +SSU |
|
90-4669-02-03-B |
BAC8U10 BAC8U10HAA | CONTROL CARD 2 +SSU |
|
90-4669-02-03-F |
BAC8U18 BAC8U18HAA | CONTROL CARD 2 +SSU |
|
90-9227-01-03-A |
BAUIABE BAUIABEFAA | OC12/STM4 I/O 4 PORT CARD |
|
90-7730-01-J |
BAS2LLP BAS2LLPAAA | QUAD FAB INTFC CARD |
|
90-4669-10 |
RSP GENERIC SOFTWARE HARDENED LOAD SET #4 R1.0 7670 RSP | |
|
90-9152-11-03-A |
BAUIAC5 BAUIAC5FAA | 4 PORT ETHERNET CARD |
|
90-6699-01-03 |

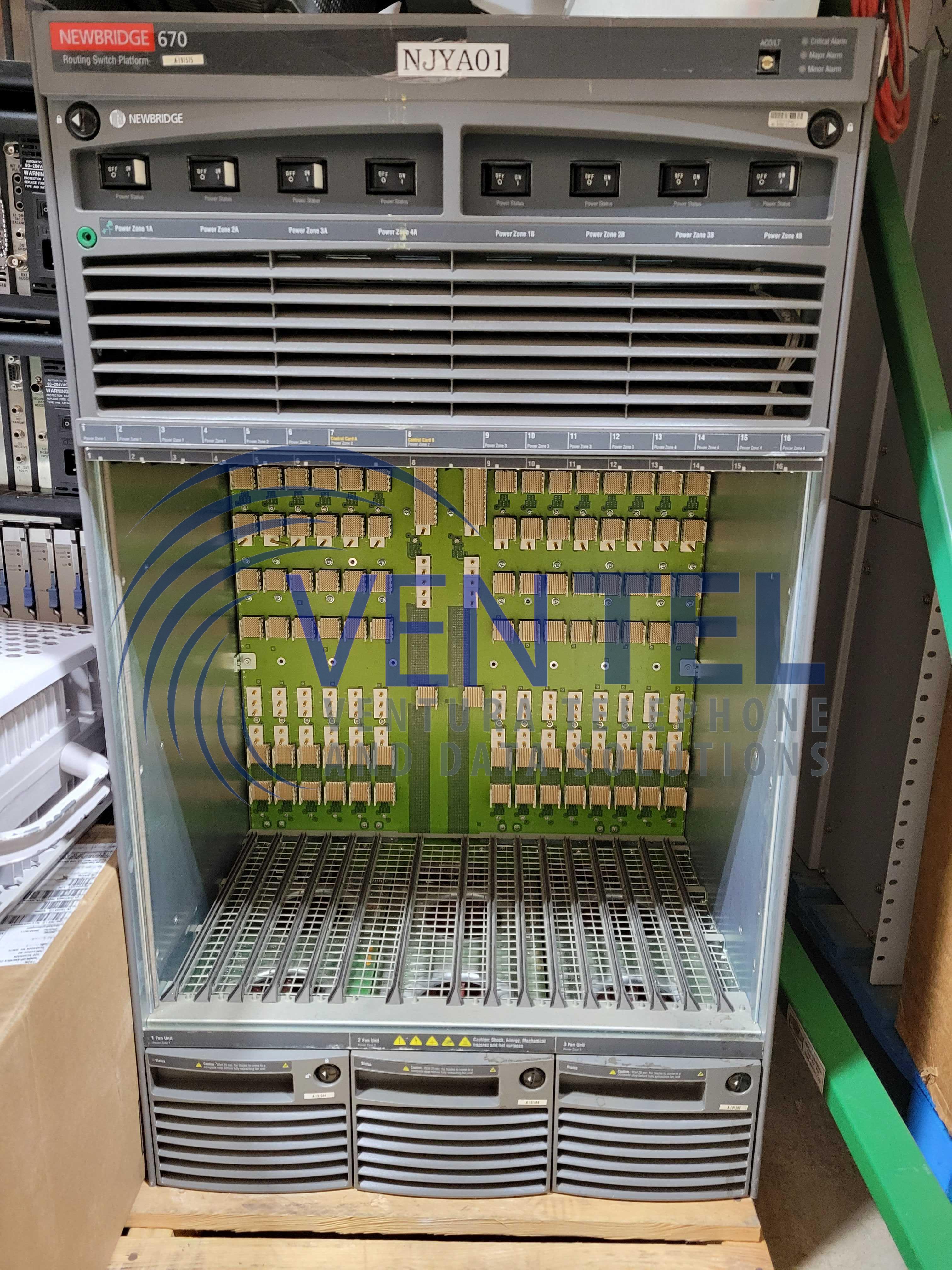

BAM9BB0 BAM9BB0BRA | 50G SINGLE SHELF |
|
90-6699-01-03-R |
BAM92B0 BAM92B0JRB | 50G SINGLE SHELF |
|
90-6699-01-03-P |
BAM92B0 BAM92B0JRA | 50G SINGLE SHELF |
|
90-6699-01-03-N |
BAM91B0 BAM91B0JRA | 50G SINGLE SHELF |
|
90-6699-01-03-L |
BAM9VB0 BAM9VB0JRA | 50G SINGLE SHELF |
|
90-6699-01-03-K |
BAM9TB0 BAM9TB0JRB | 50G SINGLE SHELF |
|
90-6699-01-03-J |
BAM9TB0 BAM9TB0JRA | 50G SINGLE SHELF |
|
90-6699-01-03-H |
BAM9SB0 BAM9SB0JRB | 50G SINGLE SHELF |
|
90-6699-01-03-G |
BAM9SB0 BAM9SB0JRA | 50G SINGLE SHELF |
|
90-6699-01-03-F |
BAM9RB0 BAM9RB0JRA | 50G SINGLE SHELF |
|
90-6699-01-03-E |
BAM9BB0 BAM9BB0JRA | 50G SINGLE SHELF |
|
90-6699-01-03-U |
BAM94B0 BAM94B0JRA | 50G SINGLE SHELF |
|
90-6699-01-T |
BAM92B0 BAM92B0JRC | 50G SINGLE SHELF |
|
90-5947-23 |
7670 | |
|
90-7389-01-B |
BA5AFF0 BA5AFF0DAB | ADAPTER CARD |
|
90-7389-01-03-A |
BA5AFF0 BA5AFF0DAA | ADAPTER CARD |
|
90-8186-03-03-B |
BA5AHJ0 BA5AHJ0DAB | ALARM CARD SPARE |
|
90-8186-03-03-A |
BA5AHJ0 BA5AHJ0DAA | ALARM CARD SPARE |
|
90-8396-02-C |
BA2C3SK BA2C3SKCAA | CONT COMPLEX |
|
90-8396-03-D |
BA2C3SL BA2C3SLCAB | CONT COMPLEX |
|
90-8396-04-D |
BA2C3SM BA2C3SMCAB | CONT COMPLEX |
|
90-8396-02-D |
BA2C3SK BA2C3SKCAB | CONT COMPLEX |
|
90-8396-03-C |
BA2C3SL BA2C3SLCAA | CONT COMPLEX |
|
90-8396-09-T |
BA2C30H BA2C30HCAB | CONT COMPLEX |
|
90-8396-09-R |
BA2C30H BA2C30HCAA | CONT COMPLEX |
|
90-8396-04-C |
BA2C3SM BA2C3SMCAA | CONT COMPLEX |
|
90-4669-02-03-C |
BAC8U1V BAC8U1VHAA | CONTROL CARD 2 +SSU |
|
90-4669-02-03-D |
BAC8U1V BAC8U1VHAB | CONTROL CARD 2 +SSU |
|
90-4669-02-03-E |
BAC8U14 BAC8U14HAA | CONTROL CARD 2 +SSU |
|
90-4669-02-03-G |
BAC8U18 BAC8U18HAB | CONTROL CARD 2 +SSU |
|
90-7314-01-D |
BASYACM BASYACMEAB | COOLING UNIT |
|
90-7314-01-03-C |
BASYACM BASYACMEAA | COOLING UNIT |
|
90-7312-02-03-A |
BA1CBB0 BA1CBB0BAA | COOLING UNIT SPARE |
|
90-7312-02-03-B |
BA1CBB0 BA1CBB0BAB | COOLING UNIT SPARE |
|
90-8978-02-03-A |
BAUIADA BAUIADAFAA | CR/IMA MODULE |
|
90-7729-01-K |
BAS2CCP BAS2CCPAAA | DL FAB INTFC CD |
|
90-8976-01-03-A |
BA5AGE0 BA5AGE0DAA | DS3 ADAPTER CARD |
|
90-8976-01-03-B |
BA5AGE0 BA5AGE0DAB | DS3 ADAPTER CARD |
|
90-8395-01-03-A |
BA1ACUJ BA1ACUJEAA | DS3 I/O CARD |
|
90-8395-01-03-C |
BA1ACUJ BA1ACUJEAC | DS3 I/O CD |
|
90-8395-01-03-B |
BA1ACUJ BA1ACUJEAB | DS3 I/O CD |
|
90-7307-04-03-A |
BA5A610 BA5A610DAA | DS3/E3 ADAPTER CARD |
|
90-7307-03-03-B |
BA5A510 BA5A510DAB | DS3/E3 ADAPTER CARD |
