The DCD-523 clock system serves as a common source for the frequency and phase sync in digital transmission and switching NE (network elements). This system carries dual rubidium oscillators and GPS tracking using the GT1 module. Originally produced by Telecom Solutions, the product line has now been discontinued by Symmetricom. Symmetricom was acquired by Microsemi in 2013.
DCD 523Data Sheet
| Part | HECI | Description | |
|---|---|---|---|
|
090-42110-01-REV-D DCD-LPR-G XCMYAWC9AA |
XCEQAAB XCEQAABAAA | GTR GPS TIMING RECEIVER ANTENNA |
|
090-42110-01 DCD-LPR-G XCMYAVM9AA |
XCEQAAA XCEQAAAAAA | GTR GPS TIMING RECEIVER ANTENNA |
|
|
090-42110-01 DCD-LPR-G |
D0MYAAA D0MYAAAAAA | GTR GPS TIMING RECEIVER ANTENNA |
|
|
090-42110-01 DCD-LPR-G XCEQAAAAAA |
XCMYAVM XCMYAVM9AA | GTR GPS TIMING RECEIVER ANTENNA (=288784 XCEQAAAAAA OTH) |
|
|
090-42110-01-REV-D DCD-LPR-G XCEQAABAAA |
XCMYAWC XCMYAWC9AA | GTR GPS TIMING RECEIVER ANTENNA (=288796 XCEQAABAAA OTH) |
|
090-42110-01-REV-F DCD-LPR-G |
XCEQAAC XCEQAACAAA | GTR GPS TIMING RECEIVER ANTENNA 4.2 |
|
|
090-42110-01-REV-F DCD-LPR-G XCEQAACAAA |
XCMYAWJ XCMYAWJ9AA | GTR GPS TIMING RECEIVER ANTENNA 4.2 (=288797 XCEQAACAAA OTH) |
|
090-42110-01-REV-G DCD-LPR-G |
XCEQAAE XCEQAAEAAA | GTR GPS TIMING RECEIVER ANTENNA 5.2 |
|
|
090-42110-01-REV-G DCD-LPR-G XCEQAAEAAA |
XCMYAWN XCMYAWN9AA | GTR GPS TIMING RECEIVER ANTENNA 5.2 (=288799 XCEQAAEAAA OTH) |
|
090-42110-01-REV-H DCD-LPR-G XCMYAWM9AA |
XCEQAAD XCEQAADAAA | GTR GPS TIMING RECEIVER ANTENNA 5.3 |
|
090-42110-01-REV-J DCD-LPR-G |
XCEQAG6 XCEQAG6AAA | GTR GPS TIMING RECEIVER ANTENNA 5.3 |
|
|
090-42110-01-REV-H DCD-LPR-G XCEQAADAAA |
XCMYAWM XCMYAWM9AA | GTR GPS TIMING RECEIVER ANTENNA 5.3 (=288798 XCEQAADAAA OTH) |
|

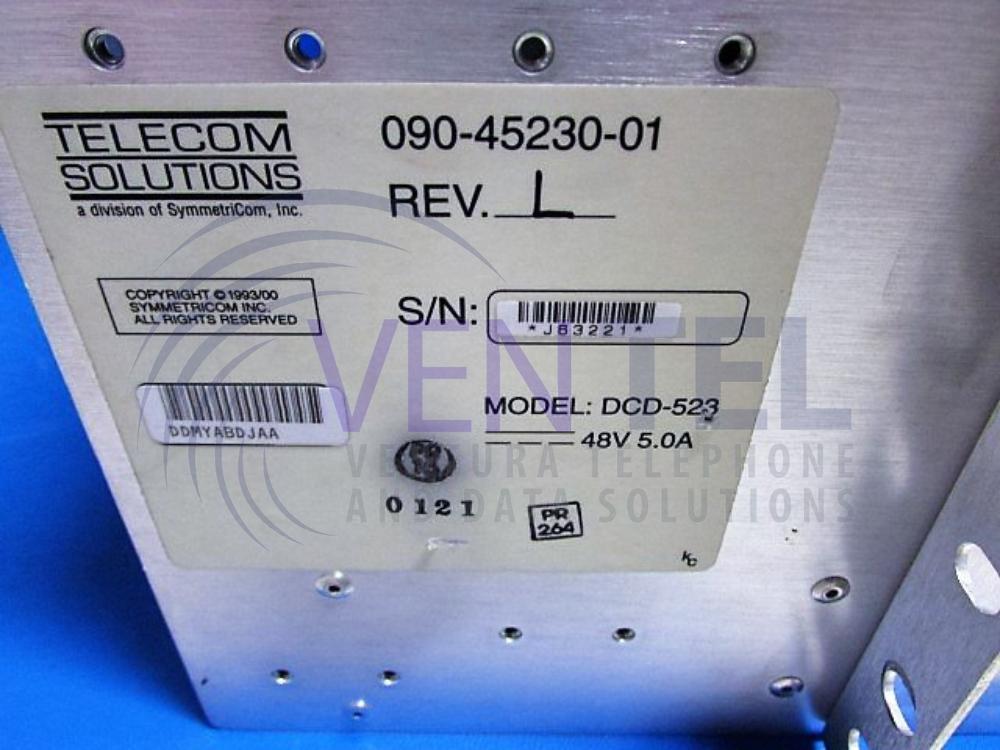

990-45231-02 |
DDMYAA3 DDMYAA3JAA | EXPANSION SHELF |
|
090-45230-01 DCD-523 |
DDMYAA5 DDMYAA5JAA | EXPANSION SHELF |
|
090-45230-01-REV-E DCD-523 |
DDMYABD DDMYABDJAA | EXPANSION SHELF |
|
090-42140-13 |
D0PQABS D0PQABS1AA | GPS TIMING INTERFACE |
|
090-42140-13-REV-R |
D0PQAC8 D0PQAC81AA | GPS TIMING INTERFACE |
|
090-42140-13-ISS-B |
D0PQAB3 D0PQAB31AA | GPS TIMING INTERFACE |
|
090-42140-15-REV-C |
D0PQACY D0PQACY1AA | GPS TIMING INTERFACE |
|
090-42140-17-REV-G |
D0PQAEV D0PQAEV1AB | GPS TIMING INTERFACE |
|
090-42140-17-REV-D |
D0PQAEV D0PQAEV1AA | GPS TIMING INTERFACE |
|
090-42140-17-REV-B |
D0PQAEH D0PQAEH1AA | GPS TIMING INTERFACE |
|
090-42140-17-REV-A |
D0PQAC0 D0PQAC01AA | GPS TIMING INTERFACE |
|
090-42140-17-ISS-A-REV-C |
D0PQAES D0PQAES1AA | GPS TIMING INTERFACE |
|
090-42140-15-REV-N |
D0PQAEX D0PQAEX1AB | GPS TIMING INTERFACE |
|
090-42140-15-REV-K |
D0PQAEX D0PQAEX1AA | GPS TIMING INTERFACE |
|
090-42140-15-REV-H |
D0PQAC7 D0PQAC71AA | GPS TIMING INTERFACE |
|
090-42140-13-ISS-C-REV-S |
D0PQAEP D0PQAEP1AA | GPS TIMING INTERFACE |
|
090-42140-15-REV-B |
D0PQACM D0PQACM1AA | GPS TIMING INTERFACE |
|
090-42140-15-REV-A |
D0PQAB9 D0PQAB91AA | GPS TIMING INTERFACE |
|
090-42140-15-ISS-A-REV-J |
D0PQAER D0PQAER1AA | GPS TIMING INTERFACE |
|
090-42140-13-ISS-C |
D0PQAB4 D0PQAB41AA | GPS TIMING INTERFACE |
|
090-42140-13-REV-L |
D0PQACJ D0PQACJ1AA | GPS TIMING INTERFACE |
|
090-42140-13-ISS-B-REV-G |
D0PQAB6 D0PQAB61AA | GPS TIMING INTERFACE QUARTZ |
|
090-42140-02 |
D0PQABB D0PQABB1AA | GPS TIMING INTERFACE F1 |
|
090-42140-11-ISS-B |
D0PQAB1 D0PQAB11AA | GPS TIMING INTERFACE T1 |
|
090-42140-11-ISS-C |
D0PQAB5 D0PQAB51AA | GPS TIMING INTERFACE T1 |
|
090-42140-19 |
D0PQABW D0PQABW1AA | GPS TIMING INTERFACE T1 |
|
090-42140-19-ISS-B |
D0PQAB2 D0PQAB21AA | GPS TIMING INTERFACE T1 |
|
090-42140-19-ISS-C |
D0PQAB8 D0PQAB81AA | GPS TIMING INTERFACE T1 |
|
090-42140-11 |
D0PQABL D0PQABL1AA | GPS TIMING INTERFACE T1 |
|
090-42140-11-ISS-B-REV-N |
D0PQAB7 D0PQAB71AA | GPS TIMING INTERFACE T1 |
|
090-42140-01 |
D0PQABA D0PQABA1AA | GPS TIMING INTERFACE T1 |
|
090-42110-02 |
XCMYAWE XCMYAWE9AA | GPS TIMING RECEIVER (=292290 XCEQAAFAAA OTH) |
|
|
090-42110-02 |
XCEQAAF XCEQAAFAAA | GTR GPS TIMING RECEIVER ANTENNA |
|
990-45230-02 |
D0MT1A0 D0MT1A04RA | MASTER SHELF |
|
090-45230-03 DCD-523 |
DDMYABM DDMYABMJAA | MASTER SHELF |
|
090-45230-10 DCD-523 |
DDMYABE DDMYABEJAA | MASTER SHELF |
|
090-45230-20 DCD-523 |
DDMYABL DDMYABLJAA | MASTER SHELF |
|
990-45230-01 |
D0MT1K0 D0MT1K04RA | MASTER SHELF |
